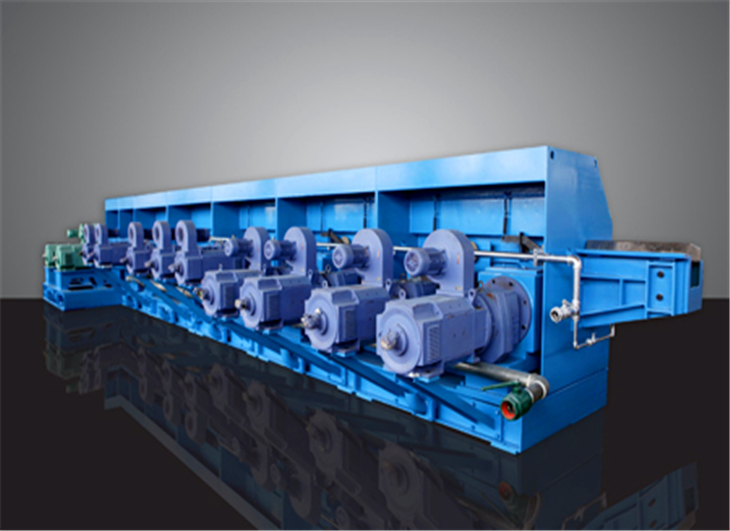

Multi-motor drive technology. Modular design, can close the capstan that is not running, more energy-saving, low noise.
Full immersion design, cooling effect is better during wire drawing.
The speed ratio of capstan is adjustable, the wire slip is reduced to a minimum, thereby reducing the wear of the capstan and ensuring the appearance quality of the wire.
Technical Specification ：
Recommended match:

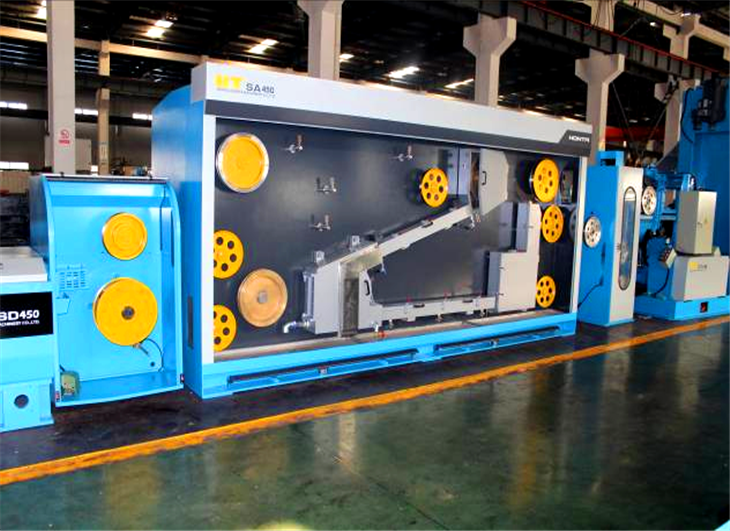

1. Online annealer (online annealing)

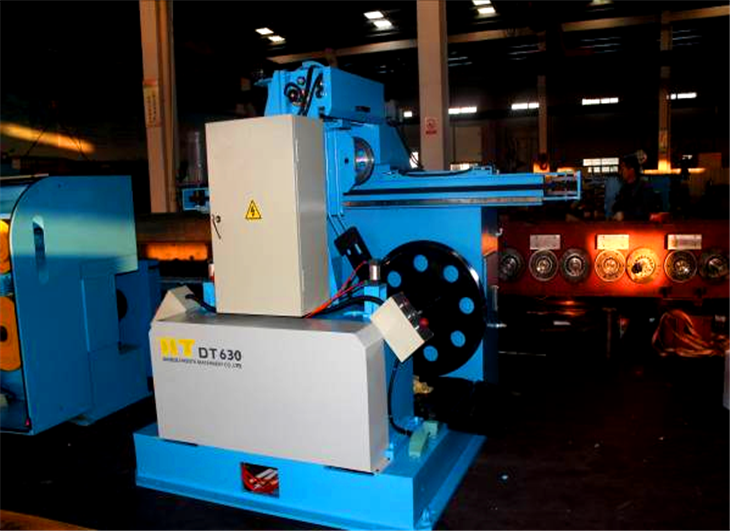

2. Double Spooler (applicable to the normal stranding process of cable conductors)

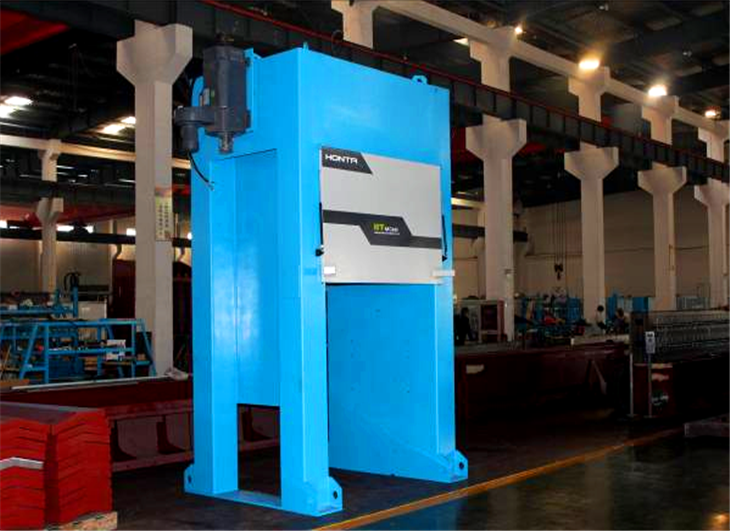

3. Basket Coiler (applicable to cable conductor stranding process. Used in Intermediate and fine wire drawing line supply wire and enameled wire bus production.)
4. Dynamic Spooler (for copper wire sales)
|
Machine type |
HT.SD/DD450.02 |
|
|
Material |
Cu |
Cu Alloy |
|
Machine speed |
Max.1800m/min |
Max. 9000m/min |
|
No. of wire |
1/2 |
1 |
|
Inlet dia. |
8.00mm |
6.0mm-10.00mm |
|
Outlet dia. |
1.20mm-4.50mm |
1.50mm-4.00mm |
|
No. of dies |
5-15 |
|
|
Capstan dia. |
450mm/customized |
|
|
Die change system |
Fast die change design |
|
|
Control method |
AC |
|
|
Drive method |
Individual drive |
|
