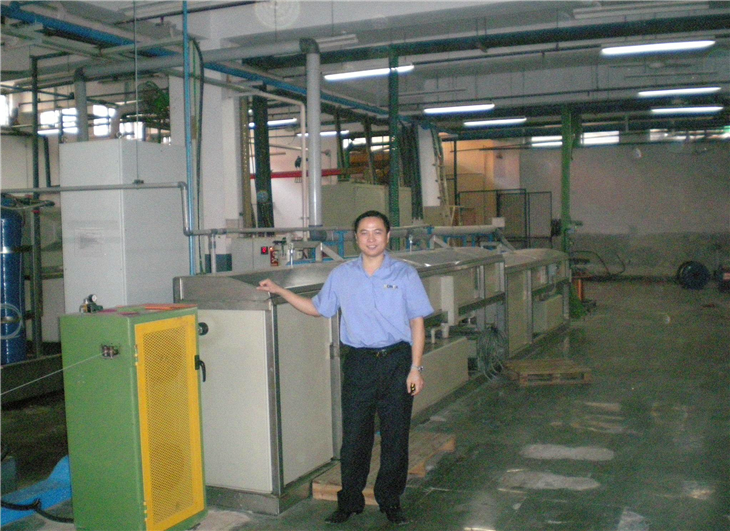

Electrolytic Plating Line

Product Overviews ：

High productivity, high quality and low power consumption. The utilization rate of tin can be 98%.

Advanced online exhaust and waste water treatment system can realize zero discharge and zero pollutio

Technical Specification ：

The production line can produce tinned copper wire in series with the continuous annealing wire drawing machine.

Machine type

HT.SN6000

HT.SN10000

HT.AG3000

HT.NI5000

Basic material

Cu

Plating material

Sn

Ag

Ni

Wire dia.

1.00-2.60mm

1.20-2.60mm

1.00-2.60mm

1.00-2.60mm

Line speed

Max.15m/s

Max.15m/s

Max.10m/s

Max.5m/s

No. of wires

1

Coating thickness

1-20μm

1-25μm

1-20μm

1-60μm

Plating current

Max. 6000A

Max. 10000A

Max. 3000A

Max. 5000A

Take up type

650/840 Down Coiler

Pay off

The wire supply system can be a drawing machine / flyer pay off/ basket pay off/ motorised pay off


CORPORATE
HONTA Established in Sep. 2006, HONTA has long been committed to the technical research of cable conductor wire drawing and stranding. It has long-term friendly cooperation with many well-known cable companies at home and abroad, and established the second production base named HONTA INC. in the United States in 2017.

HONTA main products are RBD for Cu and Al, Electrolytic plating line, Multiwire drawing line, high-speed stranding equipment. Now HONTA has become a large-scale service provider of cable equipment system. Our products are renowned for their high speed, efficiency, automation and humanity.
