Technical Specification ：
Recommended match:

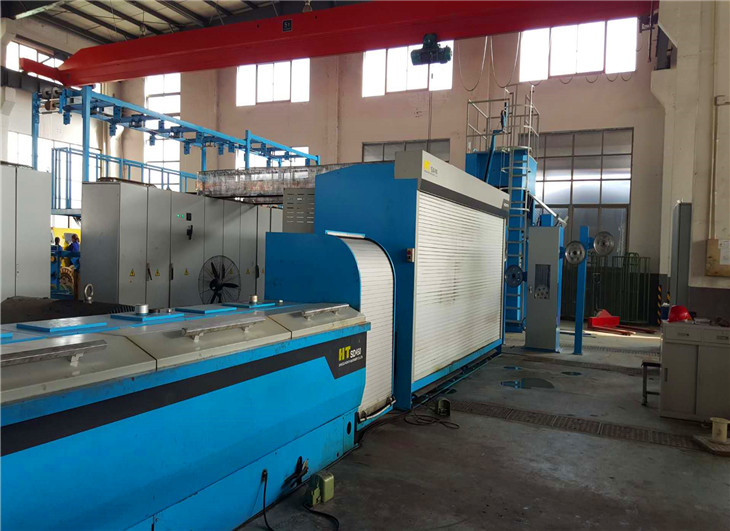

1. Online annealer (online annealing)

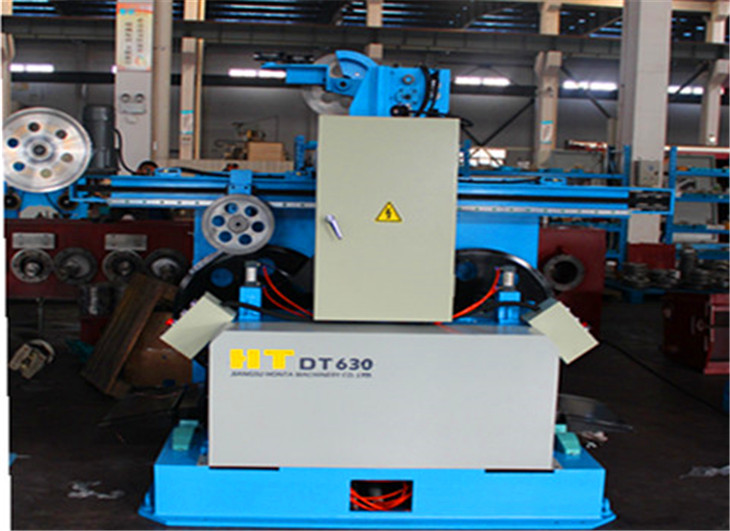

2. Double Spooler (applicable to the normal stranding process of cable conductors)

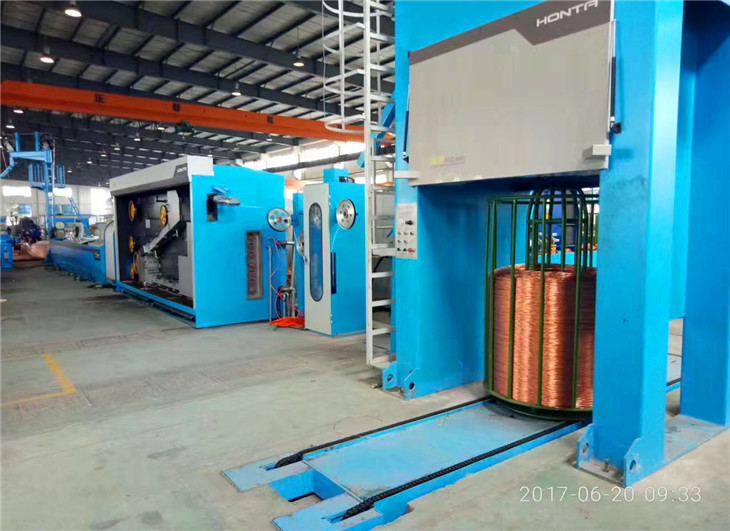

3. Basket Coiler (applicable to cable conductor stranding process. Used in Intermediate and fine wire drawing line supply wire and enameled wire bus production.)
4. Dynamic Spooler (for copper wire sales)
|
HT.SD450.01.13 |
HT.SD450.01.11 |
HT.SD450.01.09 |
HT.SD450.01.07 |
|
|
Material |
Cu、Cu alloy |
|||
|
Machine speed |
Max.1500m/min |
Max. 1000m/min |
||
|
No. of wires |
1/2wires |
1wire |
||
|
Inlet dia. |
8.00mm |
|||
|
Outlet dia. |
1.20mm-3.50mm |
1.60mm-3.50mm |
2.20mm-3.50mm |
2.60mm-3.50mm |
|
No. of wires |
Max.13 |
Max.11 |
Max.9 |
Max.7 |
|
Drawing capstan dia. |
450mm |
400mm |
||
|
Finished capstan dia. |
450mm |
400mm |
||
|
Die change system |
Fast die change design |
|||
|
Control method |
DC/AC |
|||
|
Drive method |
Two motors |
One motor |
||
