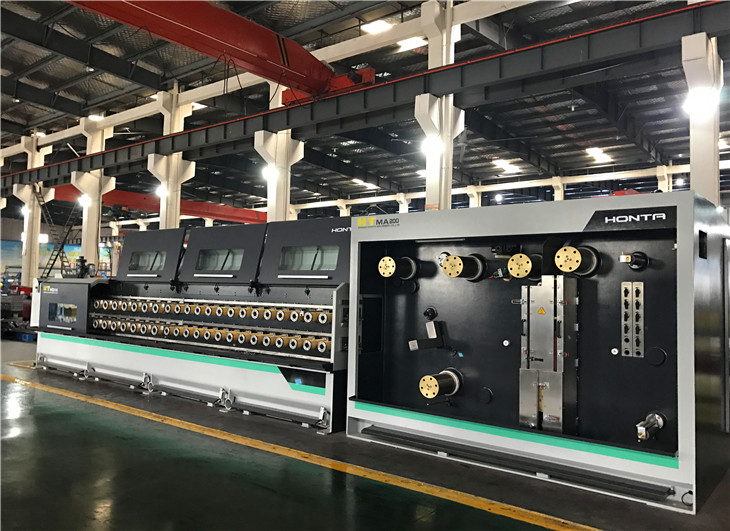

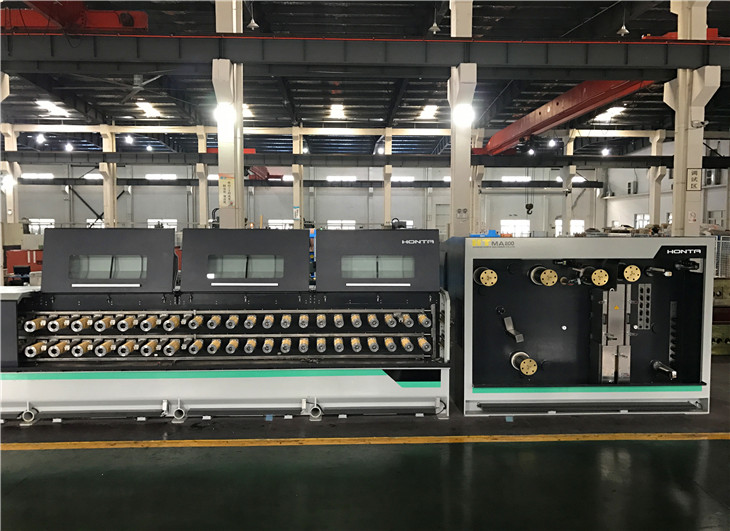

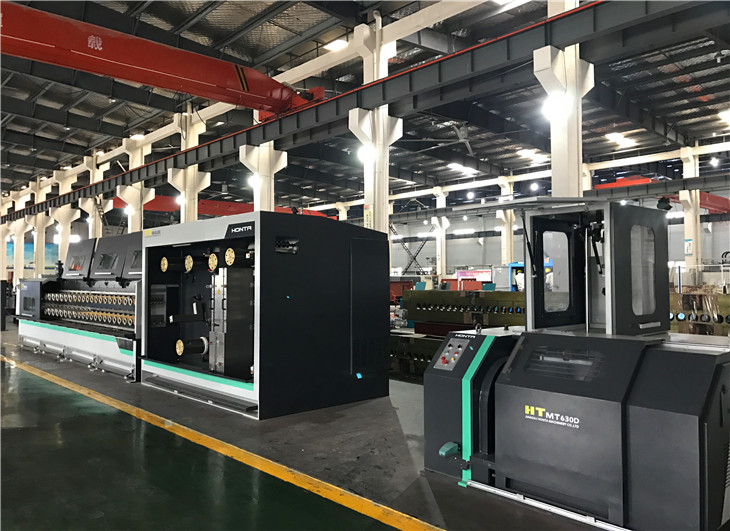

24wires Multiwire Drawing Line

Product Overviews :

Driven by high precise helical gears; particular oil lubrication mechanism; dual motors drive.
The capstan and die lubrication system is in emulsion spraying with force from inside of die holders design; In this way, the lubrication is more sufficient and it save space, moreover, it makes operation more convenient.
Annealing contact copper rings, nickel tubes are made from special alloy; it can ensure a longer service life.
The annealer control system is in zero length preset voltage design, so that it can ensure stable annealing of wires in the process of machine start and stop.

Technical Specification :

A special mechanism is designed to meet requirements of drawing bare copper wires, tinned copper wires and silver plated copper wires.

Machine type

HT.MD100.03.27.24

HT.MD100.03Multiwire Drawing Machine

HT.MA200Annealer

Material

Bare copper wire

Tinned copper wire

Machine speed

Max.1800m/min

No. of wire

24

Wire range

0.15-0.40mm

Inlet dia.

2.60mm

Contact pulley dia.

200

Outlet dia.

0.15-0.40mm

Annealing voltage

60V

No. of dies

27

Annealing current

Max.5000A

Drawing ring dia.

120/100mm

Annealing power

360Kw

Control method

AC/DC

Control method

DC Resistance Annealer
