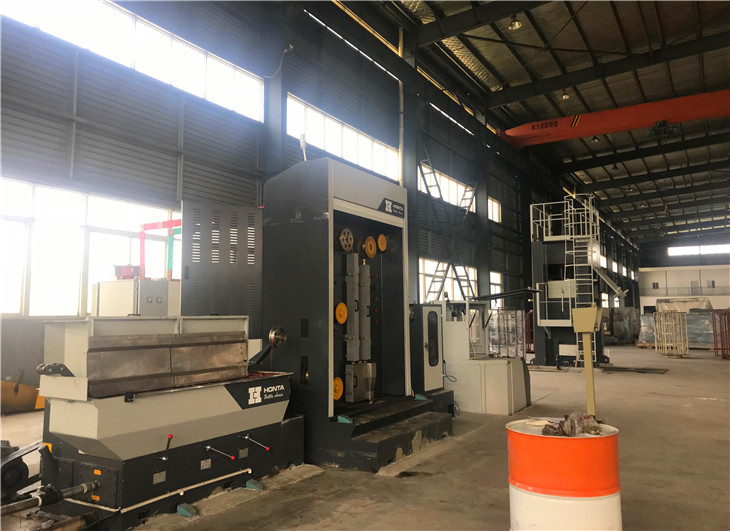

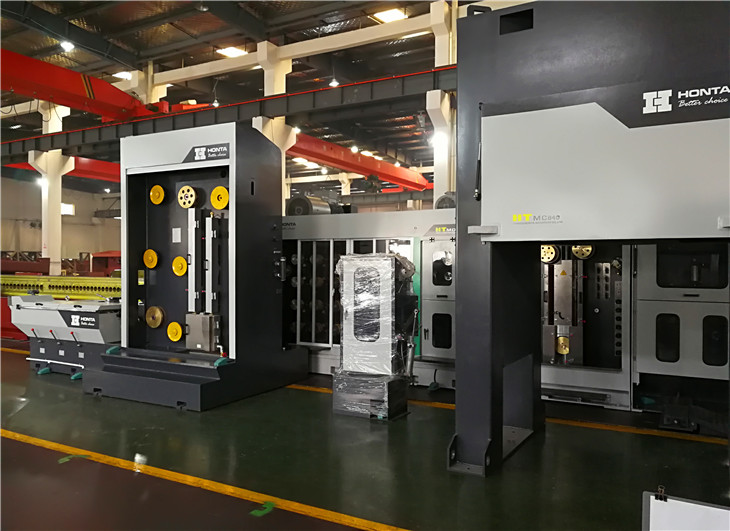

Intermediate Wire Drawing Line

Product Overviews ：
High-precision grinding helical gear transmission, forced oil lubrication control, low noise. Full immersion lubrication design.
DC annealing control, annealing automatic tracking speed. Ensure that the elongation of copper wire is stable and uniform.
The take-up tension PID is automatically adjusted to ensure that the tension during the wire drawing process is always stable.
Smaller compression ratio design is more suitable for the production of large-size conductors, such as the production of wire and single conductor.

Technical Specification ：

Machine type

HT.SD300.01.17

HT.SD250.01.17

Material

Cu、Cu Alloy

Cu

Machine speed

Max. 1500m/min

Max. 1800m/min

Inlet dia.

Max. 3.50mm

Max. 3.00mm

Outlet dia.

0.80-2.76mm

0.40-1.60mm

No. of dies

17

17

Drawing capstan dia.

300mm

250mm

Finished capstan dia.

300mm

250mm

Annealing current

Max. 3500A

Max. 2000A

Annealing power

Max. 270Kw

Max. 170Kw
