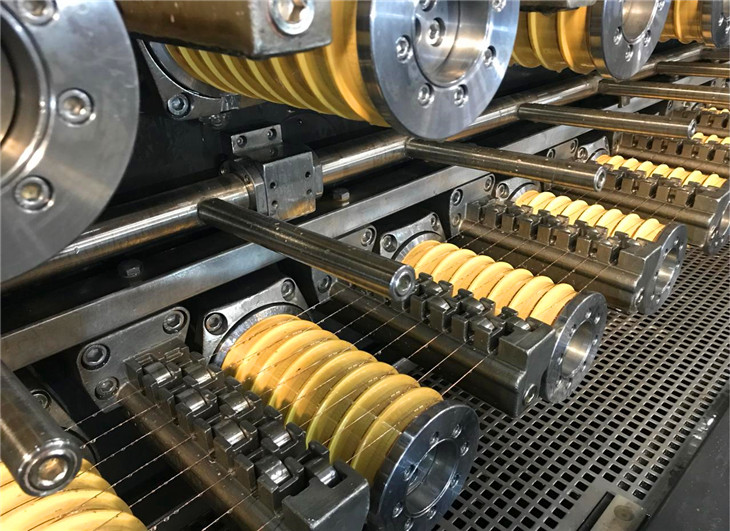

Driven by high precise helical gears;
particular oil lubrication mechanism; dual motors drive.
The capstan and die lubrication system is in emulsion spraying with force from
inside of die holders design; In this way, the lubrication is more sufficient
and it save space, moreover, it makes operation more convenient.
Annealing contact copper rings, nickel tubes are made from special alloy; it can
ensure a longer service life.
The annealer control system is in zero length preset voltage design, so that it
can ensure stable annealing of wires in the process of machine start and stop.
Technical Specification ：
A special mechanism is designed to meet requirements of drawing bare copper wires, tinned copper wires and silver plated copper wires.
|
Machine type |
HT.MD100.01.25.16 |
|||
|

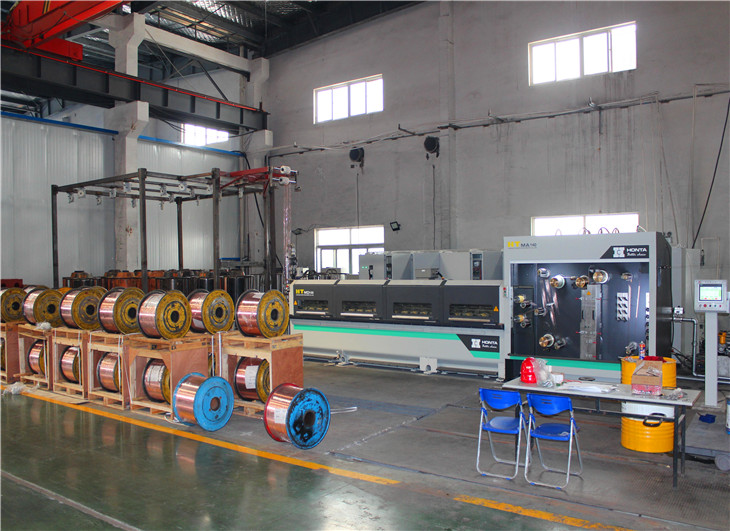

HT.MD100.01 Multiwire Drawing Machine |
|

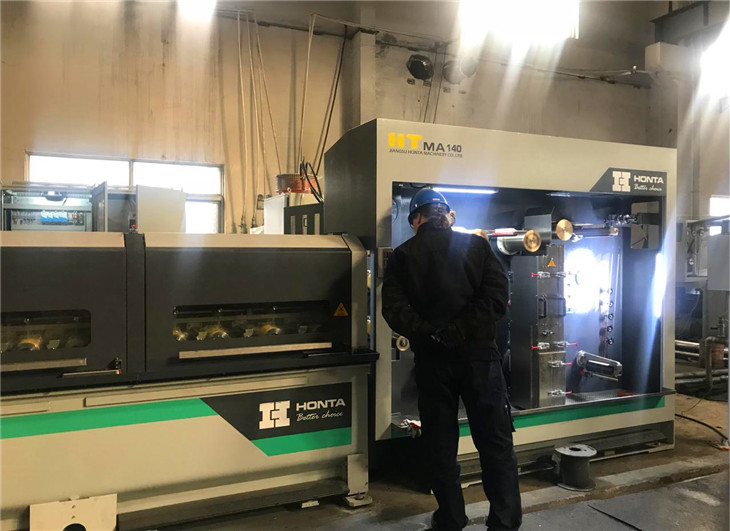

HT.MA140 Annealer |
||
|
Material |
Bare copper wire Tinned copper |
|
Machine speed |
Max.1800m/min |
|
No. of wire |
16 |
|
Wire range |
0.10-0.40mm |
|
Inlet dia. |
1.50-1.80mm |
|
Contact pulley dia. |
140 |
|
Outlet dia. |
0.10-0.40mm |
|
Annealing voltage |
60V |
|

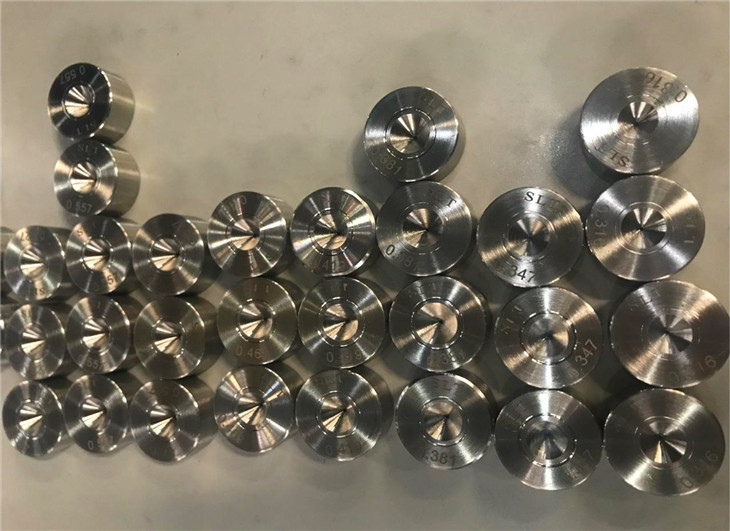

No. of dies |
25 |
|
Annealing current |
Max.2500A |
|
Drawing ring dia. |
100mm |
|
Annealing power |
170Kw |
|
Control method |
DC/AC |
|
Control method |
DC Resistance Annealer |
