Driven by high precise helical gears;
particular oil lubrication mechanism; dual motors drive.
The capstan and die lubrication system is in emulsion spraying with force from
inside of die holders design; In this way, the lubrication is more sufficient
and it save space, moreover, it makes operation more convenient.
Annealing contact copper rings, nickel tubes are made from special alloy; it can
ensure a longer service life.
The annealer control system is in zero length preset voltage design, so that it
can ensure stable annealing of wires in the process of machine start and stop.
Technical Specification ：
A special mechanism is designed to meet requirements of drawing bare copper wires, tinned copper wires and silver plated copper wires.

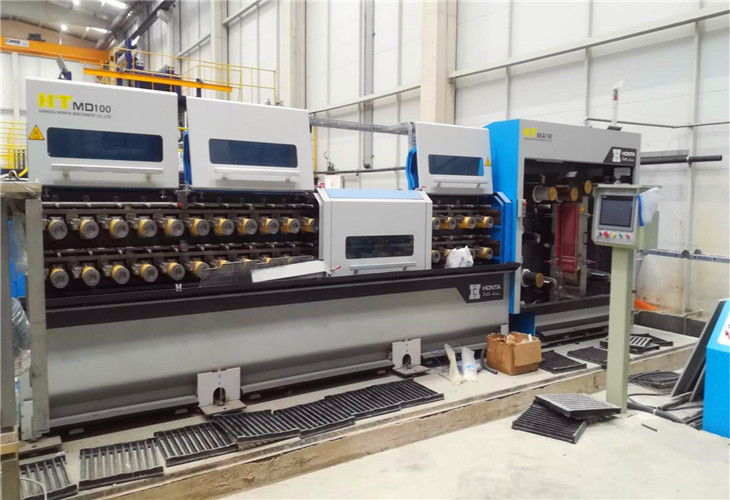

Machine type
HT.MD100.03.22.16
HT.MD100.01Multiwire Drawing Machine
HT.MA140/200 Annealer
Material
Bare copper wire
Tinned copper
Machine speed
Max.1800m/min
No. of wire
16
Wire range
0.15-0.40mm
Inlet dia.
1.60-2.00mm
Contact pulley dia.
140/200
Outlet dia.
0.15-0.40mm
Annealing voltage
60V
No. of dies
22
Annealing current
Max.2500A
Max.3000A
Drawing ring dia.
100mm
Annealing power
170Kw/230Kw
Control method
DC/AC
Control method
DC Resistance Annealer
