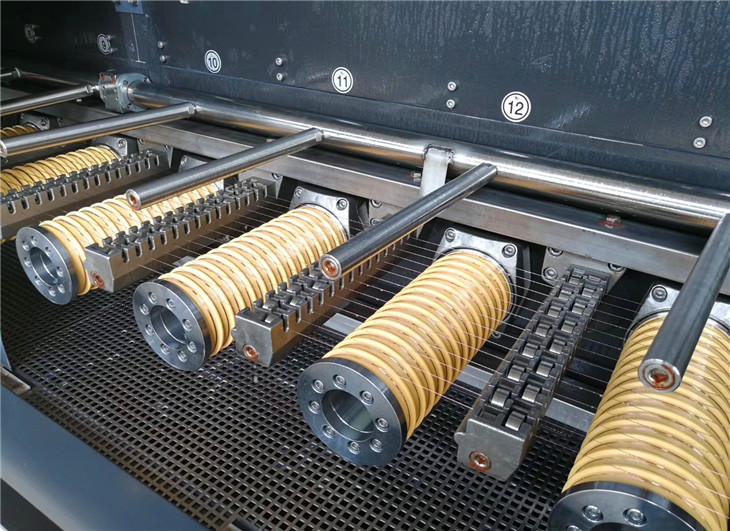

Driven by high precise helical gears;
particular oil lubrication mechanism; dual motors drive.
The capstan and die lubrication system is in emulsion spraying with force from
inside of die holders design; In this way, the lubrication is more sufficient
and it save space, moreover, it makes operation more convenient.
Annealing contact copper rings, nickel tubes are made from special alloy; it can
ensure a longer service life.
The annealer control system is in zero length preset voltage design, so that it
can ensure stable annealing of wires in the process of machine start and stop.
Technical Specification ：
A special mechanism is designed to meet requirements of drawing bare copper wires, tinned copper wires and silver plated copper wires.
Machine type
HT.MD120.03.19.14

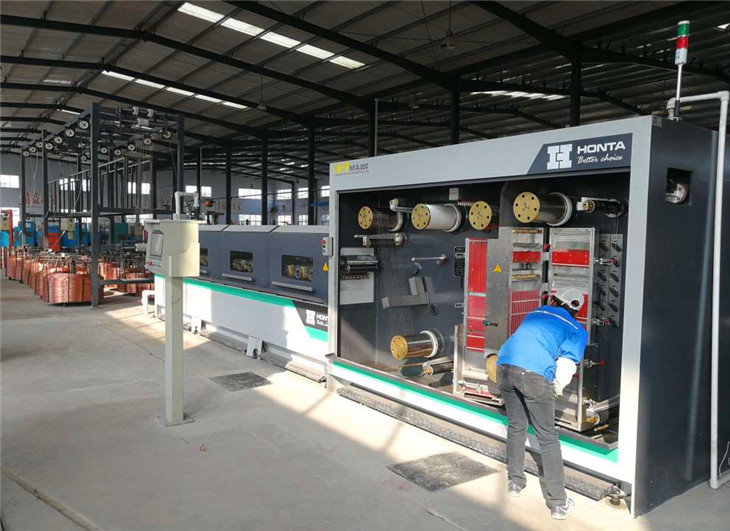

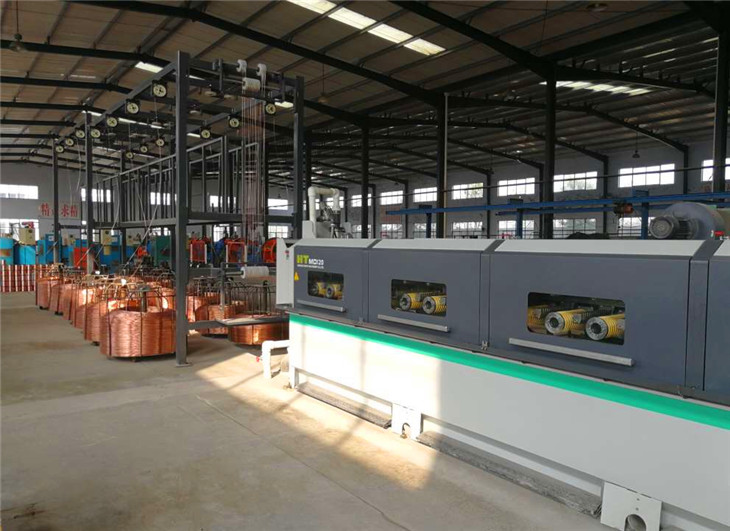

HT.MD120.03Multiwire Drawing Machine
HT.MA200 Annealer
Material
Bare copper wire
Tinned copper
Machine speed
Max.1800m/min
No. of wire
14
Wire range
0.20-1.05mm
Inlet dia.
7*2.60mm & 14*1.80mm
Contact pulley dia.
200
Outlet dia.
7*0.30-1.05mm
14*0.20-0.64mm
Annealing voltage
60V
No. of dies
19
Annealing current
Max.5000A
Drawing ring dia.
120mm
Annealing power
360Kw
Control method
DC/AC
Control method
DC Resistance Annealer
