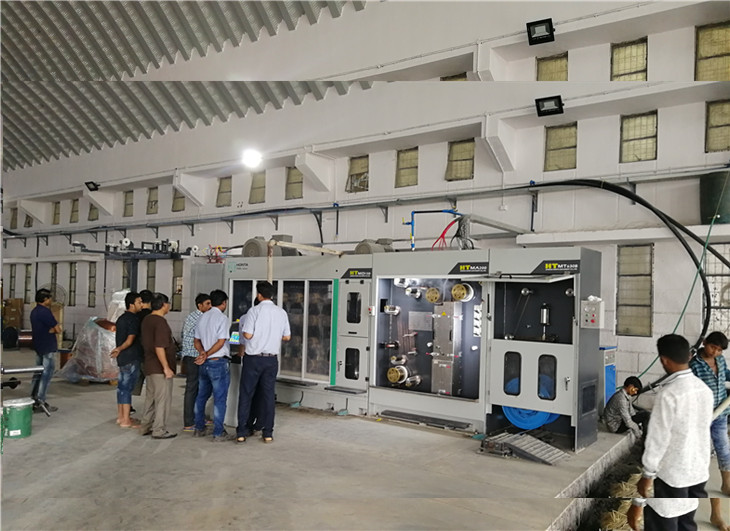

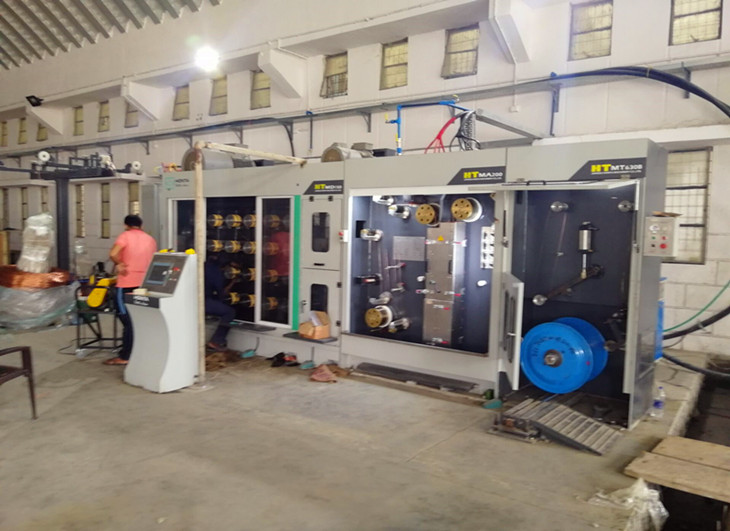

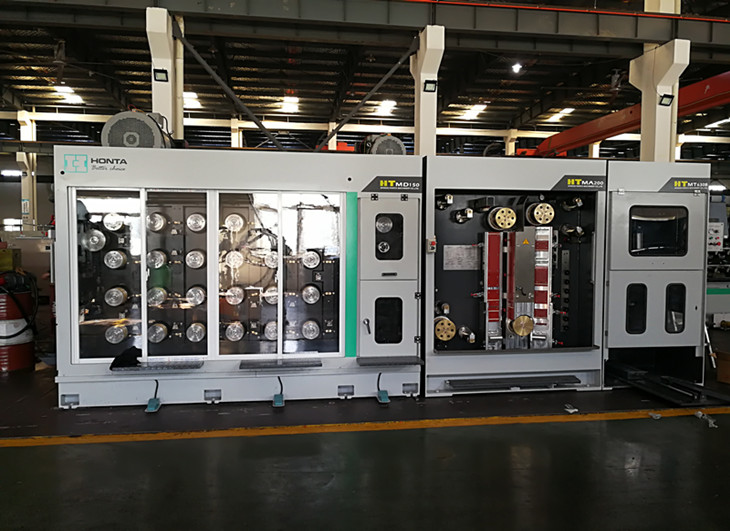

4wires Multiwire Drawing Line

Product Overviews :

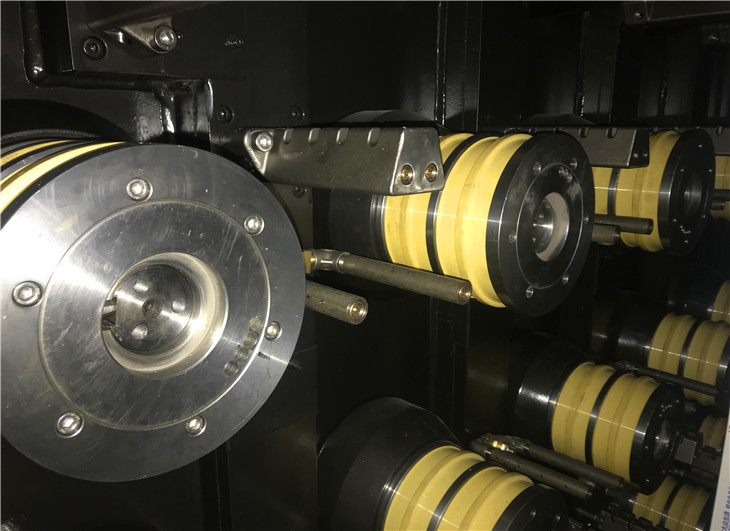

Driven by high precise helical gears; particular oil lubrication mechanism; dual motors drive.
The capstan and die lubrication system is in emulsion spraying with force from inside of die holders design; In this way, the lubrication is more sufficient and it save space, moreover, it makes operation more convenient.
Annealing contact copper rings, nickel tubes are made from special alloy; it can ensure a longer service life.
The annealer control system is in zero length preset voltage design, so that it can ensure stable annealing of wires in the process of machine start and stop.

Technical Specification :

A special mechanism is designed to meet requirements of drawing bare copper wires, tinned copper wires and silver plated copper wires.

Machine type

HT.MD150.01.25.04

HT.MD150.01 Multiwire Drawing Machine

HT.MA140 Annealer

Material

Bare copper wire

Tinned copper

Machine speed

Max.1800m/min

No. of wire

2/4

Wire range

0.15-0.60mm

Inlet dia.

1.60-2.00mm

Contact pulley dia.

140

Outlet dia.

0.15-0.60mm

Annealing voltage

60V

No. of dies

25

Annealing current

Max.1000A

Drawing ring dia.

150mm

Annealing power

85Kw

Control method

DC/AC

Control method

DC Resistance Annealer
