8wires Multiwire Drawing Line

Product Overviews :

Driven by high precise helical gears; particular oil lubrication mechanism; dual motors drive.
The capstan and die lubrication system is in emulsion spraying with force from inside of die holders design; In this way, the lubrication is more sufficient and it save space, moreover, it makes operation more convenient.
Annealing contact copper rings, nickel tubes are made from special alloy; it can ensure a longer service life.
The annealer control system is in zero length preset voltage design, so that it can ensure stable annealing of wires in the process of machine start and stop.

Technical Specification :

A special mechanism is designed to meet requirements of drawing bare copper wires, tinned copper wires and silver plated copper wires.

Machine type

HT.MD100.03.22.08

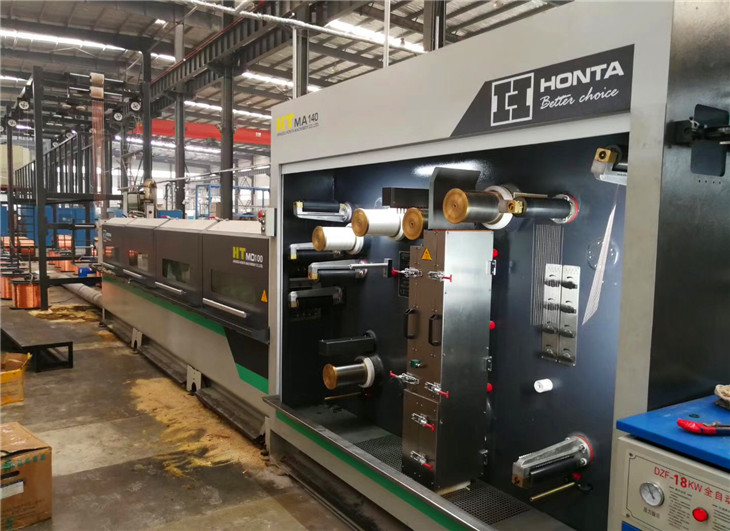

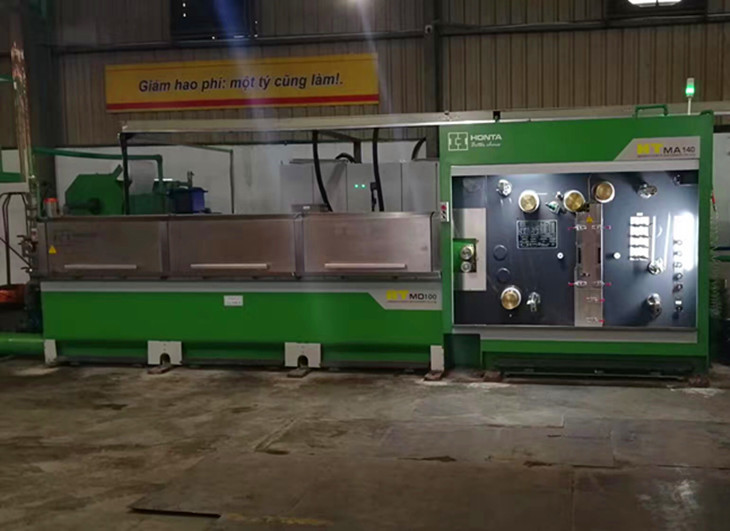

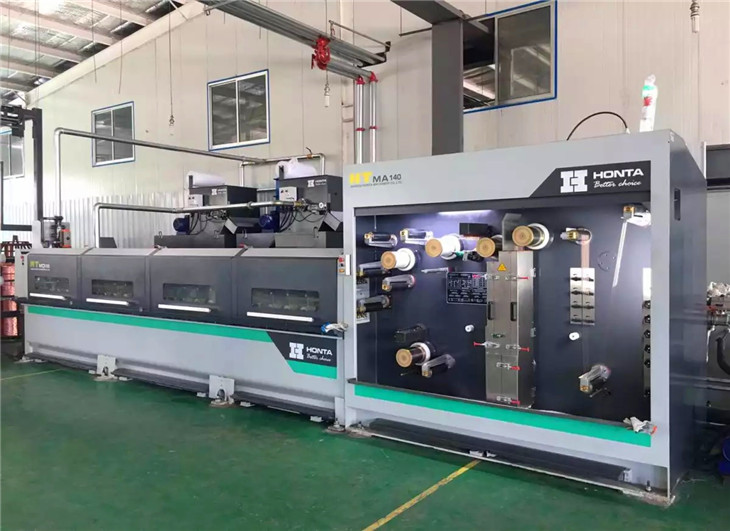

HT.MD100.03Multiwire Drawing Machine

HT.MA140Annealer

Material

Bare copper wire

Tinned copper

Machine speed

Max.1800m/min

No. of wire

8

Wire range

0.10-0.50mm

Inlet dia.

1.50-1.80mm

Contact pulley dia.

140

Outlet dia.

0.10-0.50mm

Annealing voltage

60V

No. of dies

25/22

Annealing current

Max.2000A

Drawing ring dia.

100mm

Annealing power

120Kw

Control method

DC/AC

Control method

DC Resistance Annealer
